Xtruck M1 Moto Fault Diagnostic Code Reader Scan Tool Motorcycle Diagnostic Scanner for BMW Yamaha Honda Kawasaki Suzuki

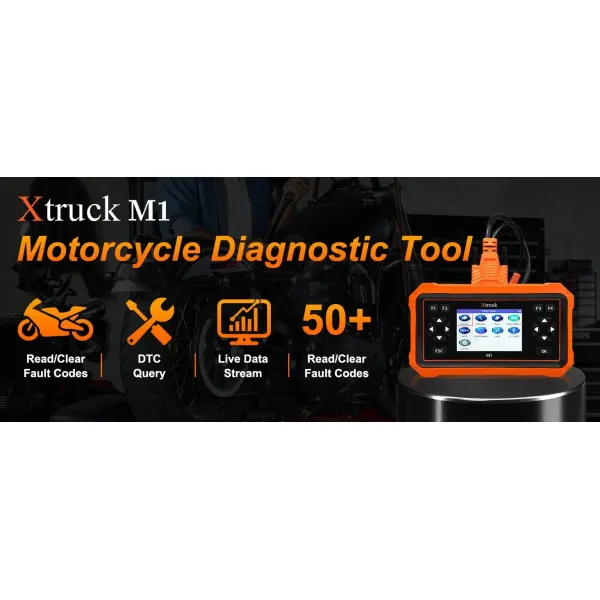

Xtruck M1 is a professional motorcycle diagnostic equipment with a brand new exterior design, handheld operation, convenient and flexible use, supporting SD card upgrades, large capacity storage, and reserved CAN bus interface
Support Language :
Traditional Chinese,English,Spanish,French,Thai,Turkish,Vietnamese,Indonesian,Portuguese,Japanese,Korean,German
Support: CFMOTO Test,PIAGGIO/VESPA KEY PROGRAMMING
Support Brand :
ADIVA, AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI, BMW, BRIXTON, BOMBARDIER, Peugeot, DUCATI, HARLEY-DAVIDSON,
HARTFORD, HONDA, HYOSUNG, KAWASAKI, KTM, KYMCO, MODENAS, OBDII, PGO, PIAGGIO, ROYAL ENFIELD, SUZUKI, SYM,
TRIUMPH, VESPA, YAMAHA, YIBEN
Function
・ Read system information
・ Freeze data
・ Clear fault codes
・ ABS system testing
・ Charging test
・ DTC query
・ CO idle speed adjustment
・ Start testing
・ actuator testing
・ Troubleshooting guidance
・ Signal output
・ Read fault codes
・ Read data stream
・ Maintenance assistant
・ Fuel injector detection
Special Functions:
| 1. Idle CO Adjust |
42. TPS idle |
83. Reset gears |
| 2. TPS Reset |
43. TPS maximum |
84. Enable ABS |
| 3. TPS/ABV Reset |
44 . ISC value reset (not available on all models) |
85. Disable ABS |
| 4. Reset TPS |
45. TPS reset(not available on all models) |
86. Enable DQS |
| 5. Carbon Time Reset |
46. Clear car network serial number |
87. Disable DQS |
| 6. Reset ABV time |
47. Learning value reset |
88. DESMO service light reset |
| 7. COFPC Reset |
48. TPS full open learning value reset |
89. OIL service light reset |
| 8. Throttle Reset |
49. O2 feedback learning value reset |
90. DENSO service light reset |
| 9. ABV Reset |
50. ISC learning value reset |
91. Keys'reset |
| 10. APV Reset |
51. Front Wheel Bleed |
92. OIL SERVICE light reset |
| 11. Oil Priming |
52. Rear Wheel Bleed |
93. PIN code reset |
| 12. ISC Learning Reset |
53. Braking system bleeding |
94. Clean the maintenance light |
| 13. Run Acc.Time Reset |
54. ABS Reset |
95. ECM Update |
| 14. Front Cylinder |
55. ABS Bleed |
96. RESET TO NEW |
| 15. Rear Cylinder |
56. Parameter adjustment |
97. READ EEPROM 95320 |
| 16. Idle Adjust |
57. Idle actuator calibration |
98. WRITE EEPROM 95320 |
| 17. Idle PRM Adjust |
58. Engine synchronization |
99. READ KEY_DATA BLOCK |
| 18. Datastream |
59. Reset adaptive values |
100. READ EEPROM 95080 |
| 19. Diag.Tool ON/OFF |
60. Set motorcycle date |
101. WRITE EEPROM 95080 |
| 20. CO Adjustment |
61. Set the service date |
102. Read ST7 internal EEPROM |
| 21. Set TPS to zero |
62. Set the service mileage |
103. Write ST7 internal EEPROM |
| 22. Set autoadaptive value to zero |
63. Adaptation |
104. READ MC68HC05 EEPROM |
| 23. Auto learn throttle position |
64. Throttle adaptation |
105. WRITE MC68HC05 EEPROM |
| 24. Reset self-adaptive values |
65. Lambda adaptation |
106. Clear engine speed history |
| 25. ECM Reset |
66. Idling adaptation |
107. Clear Engine Extreme History |
| 26. Reset autoadaptive values |
67. Idle motor adjustment |
108. Clear key usage time record |
| 27. CO value adjustmen |
68. Reset self-adaptive A/F parameters |
109. Clear Last minute record |
| 28. Throttle closed learning value reset |
69. TPS reset closed position |
110. Adaptation values reset |
| 29. Idle valve opening learning value reset |
70. Adjustment of exhaust-flap |
111. Throttle balancing |
| 30. ECU reset |
71. Adjustment of balance pipe |
112. ISC apperture learned value reset |
| 31. Autoadaptive value Reset |
72. Enable speed limit |
113. Throttle learning value reset |
| 32. Idle position throttle self-learning |
73. Lift speed limit |
114. ISC rpm control |
| 33. Max position throttle self-learning |
74. Setting TPS to zero |
115. Oxygen sensor learning value setting |
| 34. Throttle position self-adapt |
75. CO calibration |
116. TPS Setup |
| 35. Reset self-adapting parameters |
76. Service lamp switch-off |
117. Oil maintenance lamp reset |
| 36. ECU Reset |
77. Self-adaptive parameters zero-setting |
118. ISC idle valve learning value reset |
| 37. Fuel trim,map 1 |
78. TPS reset |
119. TP throttle fully closed learning value reset |
| 38. Fuel trim,map 2 |
79. CO trimmer |
120. ISC speed control |
| 39. Manual TPS max |
81. APS reset closed position |
121. Long term fuel correction value reset |
| 40. Minimum CO map 1 |
81. Throttle position sensor reset |
|
| 41. Minimum CO map 2 |
82. Air/fuel ratio learning value reset |
|
ECU Information: (Support Brand )
ADIVA,AEON,APRILIA,ARCTIC CAT,BAJAJ,BENELLI,BMW,BOMBARDIER,Peugeot,DUCATI,HARLEY-DAVIDSON,
HARTFORD,HONDA,HYOSUNG,KAWASAKI,KTM,KYMCO,MODENAS,OBDII,PGO,PIAGGIO,ROYAL ENFIELD,
SUZUKI,SYM,TRIUMPH,VESPA,YIBEN
Read Fault Code:(Support Brand )
ADIVA, AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI, BMW, BRIXTON, BOMBARDIER, Peugeot, DUCATI, HARLEY-DAVIDSON,
HARTFORD, HONDA, HYOSUNG, KAWASAKI, KTM, KYMCO, MODENAS, OBDII, PGO, PIAGGIO, ROYAL ENFIELD,
SUZUKI, SYM, TRIUMPH, VESPA, YAMAHA, YIBEN
Erase Fault Code:(Support Brand )
ADIVA,APRILIA,ARCTIC CAT,BENELLI,BMW,BRIXTON,BOMBARDIER,Peugeot,DUCATI,HARLEY-DAVIDSON,
HONDA,HYOSUNG,KAWASAKI,KTM,KYMCO,MODENAS,OBDII,PGO,PIAGGIO,ROYAL ENFIELD,SUZUKI,
SYM,TRIUMPH,VESPA,YAMAHA,YIBEN
Freeze Frame Data: (Support Brand )
AEON,BRIXTON,BOMBARDIER,HARTFORD,KAWASAKI,OBDII,PGO,ROYAL ENFIELD,SUZUKI,YAMAHA
Live data: (Support Brand )
ADIVA, AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI, BMW, BOMBARDIER, Peugeot, DUCATI, HARLEY-DAVIDSON,
HARTFORD, HONDA, HYOSUNG, KAWASAKI, KTM, KYMCO, MODENAS, OBDII, PGO, PIAGGIO, ROYAL ENFIELD,
SUZUKI, SYM, TRIUMPH, VESPA, YIBEN
Actuator Test:(Support Brand )
ADIVA,APRILIA,BENELLI,BMW,BOMBARDIER,DUCATI,HYOSUNG,KAWASAKI,KTM,OBDII,PIAGGIO,SUZUKI,TRIUMPH,VESPA,YIBEN
Diagnostic: (Support Brand )
BRIXTON, YAMAHA
I/M Readiness: (Support Brand )
OBDII, SUZUKI

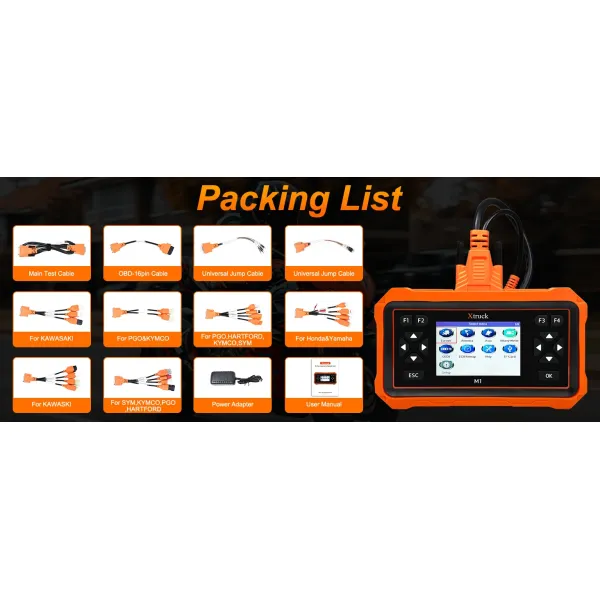

Xtruck M1 OBD version:
1 x Main Unit
1 x Main Test Cable
1 x Power Adapter
1 x OBD-16pin Cable
1x Universal Jump Cable
1 x User Manual
